EXITINGemergency and exit lights

This industrial grade emergency exit luminaire is a purpose-built solution designed to deliver outstanding performance and durability in the most challenging industrial and commercial environments. Constructed from flame-retardant polycarbonate and sheet metal, it achieves an IP67 rating, ensuring complete protection against dust ingress and powerful water jets from any direction. Coupled with an IK10 impact rating, the unit is engineered to withstand significant mechanical force, making it ideal for high-traffic and high-risk settings. Compliant with AS/NZS 2293 standards, this maintained emergency light guarantees continuous illumination during normal operation and delivers over two hours of autonomous function in the event of a mains power failure, enhancing safety and visibility during critical situations.

With a robust profile measuring 600mm in length, 270mm in height, and 140mm in depth, and a weight of 4 kilograms, this unit offers a generous 40-metre viewing range, making it suitable for large-scale facilities. It incorporates a high-efficiency, fixed LED module rated for a 100,000-hour lifespan, delivering consistent output with minimal energy draw—just 5W in standby mode. Internally, the luminaire features an intelligent three-stage battery charger system with advanced management protocols, safeguarding the battery from overcharging, deep discharge, and short circuits. A green LED indicator confirms charging status, and a manual test switch provides straightforward functional diagnostics to ensure ongoing operational readiness.

Designed for surface wall mounting, the unit integrates a large terminal block and a 20mm² cable entry to accommodate high-capacity wiring installations. Its construction and design make it suitable for diverse settings such as stadiums, car parks, train stations, aquatic facilities, and active construction zones. The luminaire functions reliably in ambient temperatures ranging from 1°C to 40°C, offering stability across a broad range of environmental conditions. This particular model is supplied without a directional arrow, providing flexibility in installation location, though left and right arrow variants are readily available to support specific evacuation routes.

Tested and certified to AS/NZS 60598.1 and RCM/EMC compliance standards, this emergency exit light is backed by a 5-year manufacturer’s warranty, including battery coverage, reinforcing its long-term dependability. It is also available in a DALI-compatible configuration for integration into digital lighting control systems, upon request. With its blend of mechanical resilience, electrical reliability, and compliance-driven design, this luminaire delivers a dependable emergency lighting solution for critical infrastructure and demanding operational spaces.

TYPE: Jumbo Size Industrial Grade Emergency Exit Sign
VIEWING DISTANCE: 40m
APPLICATIONS: Almost any environment including  car parks, stadiums, swimming centers, construction sites, train stations etc.
COLOUR: Green and white
WARRANTY: 5 years including battery
IP RATING: IP67 (totally protected against dust, totally protected against torrential rain and water - even short periods of immersion in water)
IK RATING: IK10 (vandalproof)
MATERIAL: Sheet-metal with flame-retardant polycarbonate
GLOBE TYPE: High efficacy LED (fixed in fitting)
LIFE SPAN: 100,000 hours for LED source

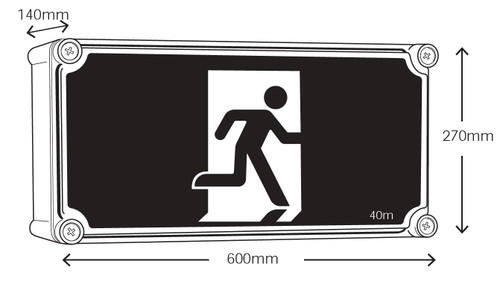

DIMENSIONS: 600mm x 270mm x 140mm
WEIGHT: 4kg
WATTAGE: 5W (standby)
BATTERY: Lithium Iron Phosphate - 10 year design life
OPERATION: Maintained
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATOR: Battery charger green LED
VOLTAGE: 230V (will handle 220V - 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted on wall
PICTOGRAM: No arrow (we have identical versions of this exit light available with left and with right arrows)
COMPLIANCE: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
CLASSIFICATION: C0 E1.6 C90 E1.0
DURATION: > 2 Hours (AS/NZS 2293) during power outage
CHARGER TYPE: Intelligent 3-stage charger with battery management system
OPERATING TEMP: 1° to 40°C
DESIGNED: For Australia
AVAILABLE: Normal (ie single point) as well as DALI (contact us if DALI required)

Ordering Information
Model Number: 37601
Model Name: Jumbo Emergency Exit Light 40m IK10 IP67 120 Mins No Arrow Maintained Industrial Grade
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

This product conforms to AS/NZ electrical standards. Electrical installation must be performed by a licensed electrician. All product details are subject to change without notice. Final specifications may vary.

Product Name: Jumbo Emergency Exit Light 40m IK10 IP67 120 Mins No Arrow Maintained Industrial Grade
Product Code: 37601
