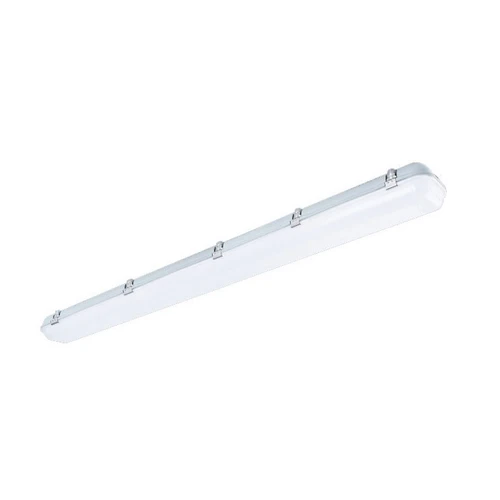

This commercial grade emergency LED batten is engineered to deliver exceptional performance in even the most challenging environments. Designed for industrial use, this 40W batten is built with a marine-grade polycarbonate body, reinforced with 316 stainless steel clips, ensuring its durability and resistance to corrosion. The IP65 rating guarantees full protection against dust and water ingress, making it an ideal solution for coastal areas and locations exposed to harsh weather conditions. The IK10 rating, signifying the highest level of impact resistance, ensures the fixture remains operational even in the face of vandalism or physical abuse. This robust construction makes it a reliable lighting solution for a wide range of commercial and industrial settings, including hospitals, warehouses, car parks, shopping centres, and coastal environments.
With a powerful output of 5000 lumens, this LED batten offers bright, consistent illumination in a variety of applications. The cool white light at 4000K enhances visibility and provides a clear, neutral lighting environment. The 120° beam angle ensures optimal light distribution, while the CRI of >84 guarantees that the colours of objects illuminated by the batten will be rendered accurately and naturally. Whether installed in a stairwell, a tunnel, or a commercial space, this fixture ensures safety and reliability, especially during power outages, thanks to its integrated emergency battery pack. The 2-hour emergency lighting capacity provides peace of mind, knowing the fixture will continue to operate during electrical disruptions.
The installation and maintenance of this LED batten are designed with convenience in mind. Its hinged cover allows for easy access to the internal components, ensuring a hassle-free installation and simplifying the maintenance process. The large terminal block and 20mm² cable entry support straightforward surface mounting, while the inclusion of 316 stainless steel brackets ensures a secure attachment to walls or ceilings. The continuous intelligent 3-stage charger with a built-in battery management system offers long-term performance, providing a battery lifecycle of up to 10 years. Additionally, the intelligent protection features, such as overcharge, low voltage disconnect, and short-circuit protection, safeguard both the fixture and the user.
This high-performance LED batten adheres to industry standards such as AS/NZS 2293 and AS/NZS 60598.1, ensuring compliance with rigorous safety and quality requirements. The testing protocol includes a manual test switch, allowing for easy verification of the unit's functionality, while the battery charging indicator provides clear feedback during operation. With a maximum ambient temperature of 40°C, the fixture is well-suited for various commercial and industrial environments, providing continuous, reliable emergency lighting. For added versatility, options such as a microwave dimming sensor and DALI compatibility are available on request. This LED batten is a cost-effective, long-lasting solution that delivers outstanding performance and dependability for both maintained and non-maintained operation modes.
TYPE: Industrial Strength Emergency LED Batten
COLOUR: Grey with white diffuser
WARRANTY: 5 years
IP RATING: IP65 (fully weatherproof)
MATERIAL: Marine grade polycarbonate with 316 stainless steel clips
LUMENS: 5000 lm
COLOUR TEMP: 4000K (cool white)
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED array)
CRI: >84
BEAM ANGLE: 120°
DIMMABLE: No

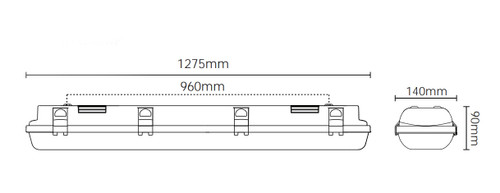

DIMENSIONS: 1275mm L x 90mm H x 140mm D
WATTAGE: 40W (4W when non-maintained)
VOLTAGE: 240V
INSTALLATION: Surface mounted (ceiling / wall)
INCLUDES: 316 stainless steel brackets for easy mounting
IK RATING: IK10 (highest rating vandal proof)
CLASSIFICATION: C0 D80, C90 D50
STANDARDS: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
DURATION: > 2 hours emergency lighting during outage
CHARGING TIME: 16 hours
CHARGER: Continuous intelligent 3-stage charger with battery management system
DRIVER / BATTERY: Designed for 10 years lifecycle
INSTALLATION: Large terminal block, 20mm² cable entry
OPERATION MODE: Multimode - maintained / non-maintained / mains switchable
PROTECTION: Overcharge, low voltage disconnect, over-current, short circuit
TESTING: Manual test switch
INDICATORS: Battery charging green LED
MAX AMBIENT: 40°C
AVAILABLE OPTIONS: Replacement battery, microwave dimming sensor, DALI (contact us if required)
