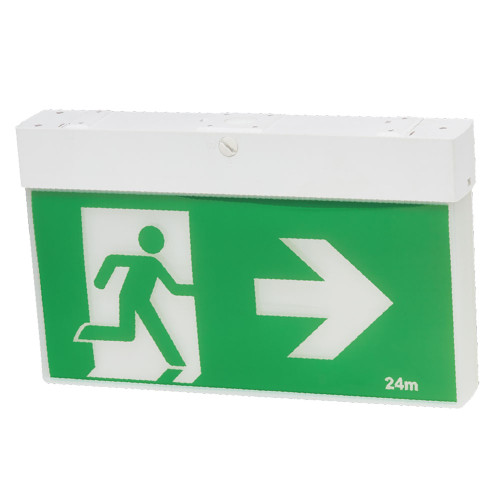

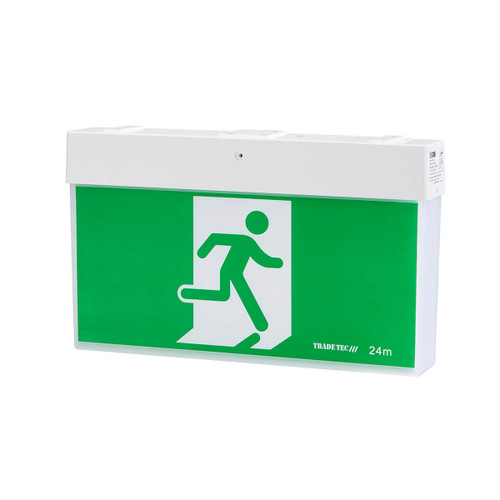

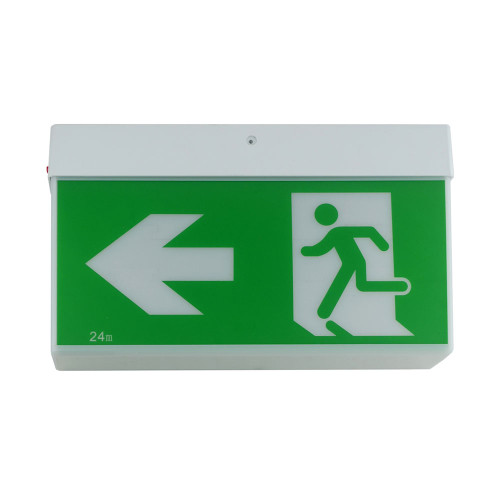

This emergency exit sign is a compact, maintained LED luminaire engineered for reliable interior emergency egress marking in accordance with AS/NZS 2293. Manufactured from flame-retardant polycarbonate in a green and white finish, it combines mechanical robustness with low mass and high impact resistance, making it suitable for continuous operation in commercial and institutional environments. The IP20 ingress protection rating confirms its suitability for indoor locations that are protected from water exposure, while the specified ambient operating temperature range of 0°C to 40°C ensures stable performance across typical building conditions. A service life of 50,000 hours for the fixed LED light source further contributes to reduced maintenance intervals and whole-of-life cost efficiency.

Electrically, the fitting operates as a 3W maintained emergency luminaire on a 240V supply (220–240V, 50–60Hz), providing continuous illumination of the exit legend under normal mains conditions and automatic emergency operation upon loss of power. The LED light source is permanently integrated (fixed chip), eliminating lamp replacement variables and ensuring consistent photometric performance over time. With a correlated colour temperature of 6000K (daylight), the emitted light delivers high visual contrast between the legend and background, aiding rapid recognition of the exit direction in low-visibility or smoke-affected situations. The optical and electrical design together support a 24m viewing distance, aligning with typical compliance and design requirements for corridor and open-area egress paths.

Emergency performance is underpinned by a LiFePO₄ (lithium iron phosphate) rechargeable battery pack, comprising a 1-cell, 3.2V, 600mAh configuration optimised for long cycle life, high charge retention and thermal stability. After a charging time of 16 hours, the system provides a minimum of 3 hours emergency duration as required by AS/NZS 2293, ensuring that the exit legend remains visible throughout extended mains failures. The luminaire carries an emergency classification of C0:D4 and C90:D3.2, enabling precise spacing calculations and compliant system design by lighting engineers. Compliance is further verified by Aust/NZ Approval No. AA-GMA-505318, giving assurance that the product has been independently assessed to the relevant safety and performance standards.

From an installation standpoint, the unit is designed as an all-in-one solution with wall, ceiling and suspended mounting capability, simplifying specification across multiple project types. Supplied complete with all pictogram inserts, it allows the installer to configure the required directional legend on site, reducing SKU proliferation and installation complexity. The housing dimensions of 211mm height, 62.5mm width and 358mm length are optimised to balance visibility and architectural integration, while a recommended mounting height of 2.7m aligns with common ceiling heights in commercial interiors. A 2-year warranty complements the robust electrical and mechanical design, making this emergency exit sign a technically sound, dependable choice for compliant and long-lasting emergency wayfinding systems.

TYPE: Emergency Exit Sign
COLOUR: Green and White
WARRANTY: 2 years
IP RATING: IP20 (indoor only)
MATERIAL: Flame-retardant polycarbonate
COLOUR TEMP: 6000K (daylight)
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED chip)
LIFE SPAN: 50,000 hours
AMBIENT TEMP: 0°C to 40°C
HEIGHT: 211mm
WIDTH: 62.5mm
LENGTH: 358mm
WATTAGE: 3W (maintained)
VOLTAGE: 240V (220–240V 50–60Hz)
INSTALLATION: Wall, ceiling and suspended mounted
INCLUDES: Complete with all in one solution including all pictogram inserts
APPROVAL: Compliant to AS/NZS 2293, Aust/NZ Approval No AA-GMA-505318
CHARGING TIME: 16 hours
BATTERIES: LifePo4, 1 cell 3.2v, 600mAh rechargeable pack

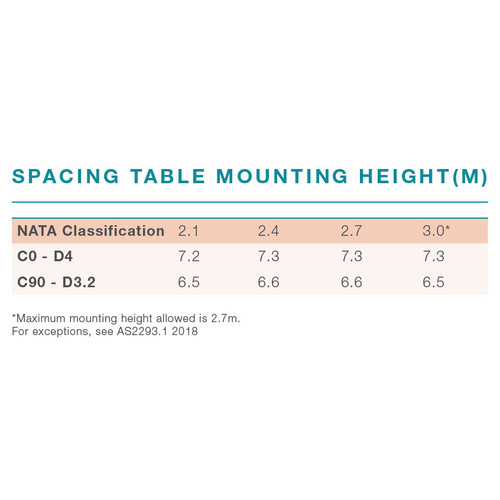

CLASSIFICATION: C0:D4 C90:D3.2 Emergency Classification (see image)
DURATION: 3 Hours (AS/NZS 2293)
VIEWING DISTANCE: 24m
MOUNTING HEIGHT: 2.7m
ADAPTOR KIT: Recessed adaptor kit available (sold separately - please contact us if required)

Ordering Information
Model Number: 18672
Model Name: 3W Emergency Exit Light LED 24m Viewing Distance Wall or Ceiling Mounted 3 Hours
Sales Inquiries: 03 9973 6373
Email Inquiries: service@exiting.com.au

This product conforms to AS/NZ electrical standards. Electrical installation must be performed by a licensed electrician. All product details are subject to change without notice. Final specifications may vary.
