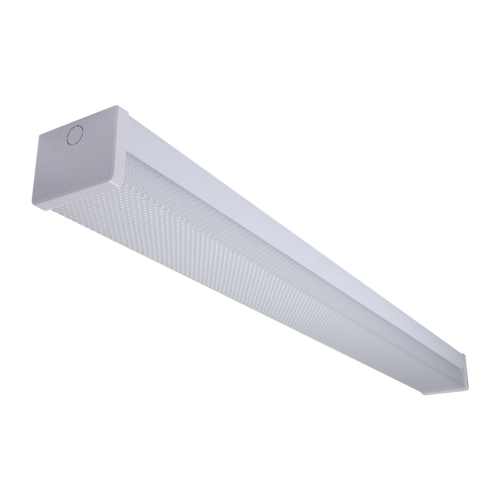

This commercial grade emergency batten light is designed to provide superior performance and reliability in industrial environments. Measuring 1.2 meters in length, this luminaire is built with an industrial-grade metal and polycarbonate construction, ensuring long-lasting durability. The light’s opal diffuser promotes even light distribution, while the 130lm/W high-output dedicated LED technology guarantees efficient illumination even in the most demanding settings. Its dimmable sensor offers adjustable brightness, allowing for optimal lighting levels tailored to specific operational needs. The product is engineered for effortless installation, aligning with Australian industrial standards and offering peace of mind with a 5-year warranty on the body and a 3-year warranty on the battery.
The emergency batten light operates on a 240V AC input voltage and features a switchable CCT range from 3000K (warm white) to 5000K (daylight white), giving users the flexibility to adjust the lighting to their preferences. This versatility ensures that the workspace is optimally illuminated for both functional tasks and comfort. The high color rendering index (CRI) of >80 enhances visibility, allowing for precise work while maintaining a comfortable lighting environment. Additionally, the 120° beam angle provides a wide distribution of light, further contributing to workplace safety and efficiency.
This product offers a significant degree of control through its remote-operated dimming and multi-mode settings, making it suitable for various applications where specific lighting requirements may fluctuate. With the ability to reduce lumen output by 50% via the driver’s half-power switch, the light delivers efficiency while meeting emergency lighting standards. Its emergency duration exceeds 90 minutes, as per Australian standards, and is available in both maintained and non-maintained modes. Designed and engineered with Australian ingenuity, the luminaire is also compliant with AS2293.3, AMD 1 & 2 Annex C, and EMC standards, guaranteeing high-quality performance and electrical safety.
The emergency batten light’s exceptional design includes practical features such as large PA16 terminals and 20mm knockouts for conduit or cable glands, which simplify installation and wiring. The unit’s lithium iron phosphate (LiFePO4) battery is highly efficient and provides reliable performance in emergency situations, with a 24-hour charging time to ensure readiness. As an industrial-grade solution, it is suited to a wide range of commercial and industrial applications, providing a robust and effective lighting solution backed by reliable customer support and warranty coverage. This batten light is the ideal choice for those seeking a high-performance, low-maintenance lighting solution for demanding environments.
Note: a single remote control can be used for multiple lights.
COLOUR: White
WARRANTY: 5 year warranty / 3 year warranty on battery
IP RATING: IP20
MATERIAL: Metal and polycarbonate and opal diffuser
LUMENS: 130 lm/W high output dedicated LED
COLOUR TEMP: CCT - 3000K (warm white) / 4000K (cool white) / 5000K (daylight white) - switchable
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED chip)
CRI: >80
BEAM ANGLE: 120°
SENSOR: Yes (dimmable, on/off and multiple modes set by remote control)
DIMMABLE: Yes (via remote)

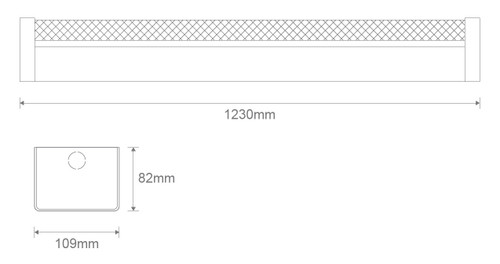

DIMENSIONS: 1230mm L x 109mm W x 82mm H
WATTAGE: 15W / 30W (half power switch on the driver which decreases the lumen output by 50%)
VOLTAGE: 240V
APPROVAL: Complies with AS2293.3 AMD 1 & 2 Annex C / EMC compliant
DURATION: Emergency duration >90 minutes (per Australian standards)
EMERGENCY: Maintained / Non-Maintained
BATTERY: LiFePO4
DESIGNED: Australian
COVER: Polycarb guard, opal with even light output
TERMINAL: Large terminal, PA16
FEATURE: 20mm knockouts for conduit or cable glands, Charge time 24 Hours
MODE: Usually non-maintained (but can be wired to maintained by the installing electrician)
REMOTE CONTROL: Required however note that a single remote can be used for multiple battens
